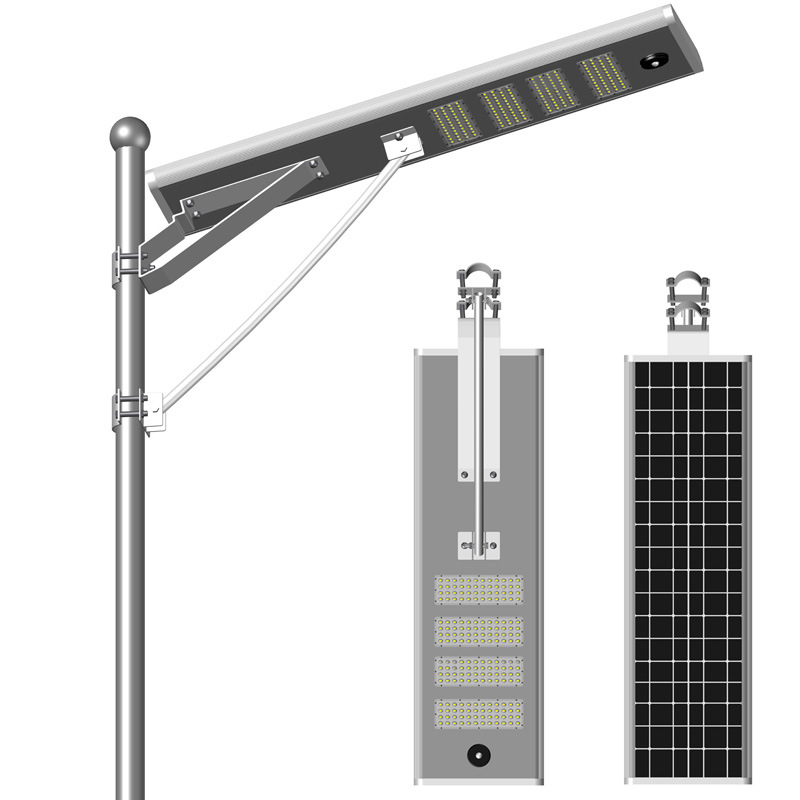

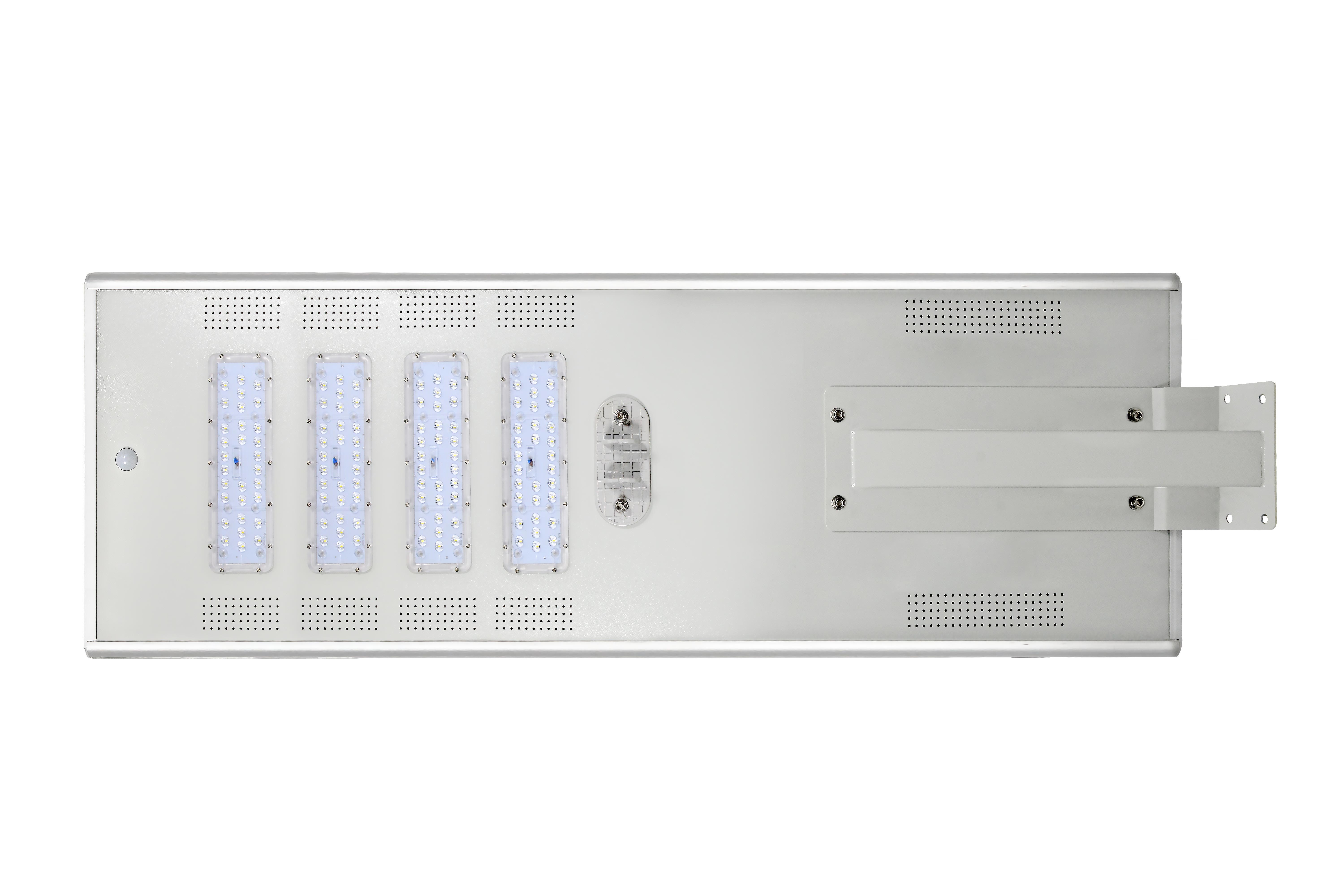

40W Solar LED street light

all in one solar street light; Professional optical design, effectively reduce glare With high efficiency lumen output, light efficiency ≥140lm/w, uniform brightness, meet the needs of urban road lighting perfectly
IP Rating:
IP67
Driver Brand Name:
LED Brand Name:
Philips
Light Efficiency:
170 LM/W
Product Size:
1165*385*135 mm
Warranty:
3 Year
Product
Specification
Project case

Energy saving All in one Solar Street Light



GH-LK series is All in One solar lighting system designed for cost-effective lighting for small to medium spaces.
Reliability and easy installation, All key components are integrated within the solar panel and light head.
The STL range uses an intelligent MPPT controller to maximize solar power capture through a powerful and compact Lithium-Ion battery system, and a motion sensor to adjust light brightness and preserve battery power.


STL Solar Street Light APPLICATIONS:


* Coastal Areas & Jetties
* Parking Lots & Perimiter Lighting
* Security & Entrance Lighting
* Signage & Billboard Lighting
* Construction Sites
* Rural & Remote Area Lighting
* Mining & Industrial Sites



Working Mode



Automatic turn on at dusk, turn off dawn.

When motion is detected, it becomes brighter.

If the movement leaves, it will turn back to dark mode again.
In order to save electricity, at dusk, counting from begin lighting

-1-6H: motion mode 100% brightness, dark mode 20% brightness;
- After 6H : motion mode 70% brightness, dark mode 20% brightness;
-The daytime turns off automatically and starts charging.

未找到相应参数组,请于后台属性模板中添加

Specification:

Life span: 80000 hrs.

Item Weight:30 lbs Waterproof rate: IP65

Luminous Flux: 5500 LM Color temperature: 6000 Kelvin

Maximum sensing distance: 39.37ft, angle: 150°

Installation height: 16.5 to 22.9ft

Working temperature: 32℉-140℉ (If temperature is lower than 32℉, the battery will turn on self-protection and the battery can't charge.)

Package:

  • 1x40W solar led street light
  • 10 x Screws
  • 3 x Gasket
  • 1 x Support Frame
  • 1 x User Manual



Note:



  1. Please read the instructions carefully before installation.
  2. Please turn on the switch before installation or charging. In the dark, after turned on the switch, it will light up after 10 seconds.
  3. Please choose a position without any shelter for enough sunshine and fully exposure.
  4. Installation tools and pole is not included.



Solar  Panel Max Power
18V/60W Mono-crystalline
Solar Panel Lifespan
25 years
Battery model
Ternary lithium battery 12V,30AH
Baterry Lifespan
5-8 years
Led chips
60PCS SMD 3030 philips
Led chips Lifespan
80000 Hours
Lumen(LM)
170LM/W
Controller (Charging time)
6 hours of effectively sunlight
Controller (Discharging time)
Half power 40H,Full Power 20H
Working time
Lighting 10 to 12 hours every day
3-7 rainy day sustainable
Controller methord
PWM charging,Human body induction + light control
Material of lamps
Alumiunm Alloy
Warranty period
3 years
Working Temperature
-20~+75℃(-4℉~167℉)
Charge/Storage
0 - 45℃
Production sizes
L1080 *W359*H60MM
Package informations

1 Sets/Ctn

Ctn sizes:1165*385*135mm
G.W.: 16 KG/CTN
Mounting height(m)
6-7 M
Space between light(m):
15-18M
Certification
CE, ROHS

CASE STUDIES

Malaysia, Billboard lighting project
