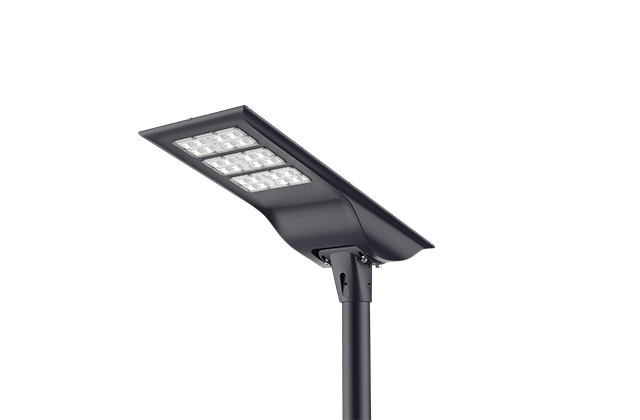

30W 200lm/w 3 years warranty Solar Energy System LED Solar Street Lamp

High-quality professional LED focus on lighting engineering construction, lamps can be used for a variety of occasions professional lighting technology to provide customers with high quality lighting production services.

Led power: 20W( 4200LM), 30W(6600lm), 30W(8000lm)
Solar panel: Monocrystalline silicon
Battery: LifePO4 Lithium battery
Light efficiency: 200lm/w Philips smd 5050(Osram, Cree, Bridgelux both available)
Controller: MPPT controller. 98% charging efficiency.
IP grade: IP65 outdoor using
Working mode: Dusk to dawn + Time controll + motion sensor
Lifespan: 8-10 years.
Warranty: 3 years, if any faulty during warranty, we will replace you new ones.
Application: Countryside, road lighting, town road, village road, urban roads, sports fields.

Request A Free Quote

Description
Video
Data sheet
Optic & Dialux
Application

1.The STL range uses an intelligent MPPT controller to maximize solar power capture through a powerful and compact Lithium-Ion battery system, and a motion sensor to adjust light brightness and preserve battery power.

2.Professional outdoor lights IP67 waterproof and lighting protection.

3.Working Mode: Automatic turn on at dusk, turn off dawn. When motion is detected, it becomes brighter.If the movement leaves, it will turn back to dark mode again.In order to save electricity, at dusk, counting from begin lighting. 1-6H: motion mode 100% brightness, dark mode 20% brightness; After 6H : motion mode 70% brightness, dark mode 20% brightness;The daytime turns off automatically and starts charging.

4.Applications: Coastal Areas, Jetties,Parking Lots,Perimiter Lighting,Security,Entrance Lighting,Signage,Billboard Lighting,Construction Sites,Rural,Remote Area Lighting,Mining & Industrial Sites

Product Model	GH-LKF-20W	GH-LKF-30W	GH-LKF-40W
Monocrystalline solar panel	18V/40W	18V/50W	18V/65W
Battery	Lithium LifePO4 3.2V 36AH	Lithium LifePO4 3.2V 76AH	Lithium LifePO4 3.2V 100AH
LEDs Chips	Philips 5050
Material	Die-casting aluminum
Luminous Efficiency	200lm/w
Controller	MPPT boost constant current integrated control
Lighting Mode	Microwave induction+segmented time control+intelligent control
Charge Time	Supporting 5-7 rainy days
Discharge Time	Sunshine lasts for 6 hours
Working Hours	>50,000 hours
IP Grade	IP65
Warranty	3 years
Product Size	760430150mm	910430150mm	1160430150mm

Country Road
Front Yard
Parking Lot
High Way
Rural Road
Viaducts
