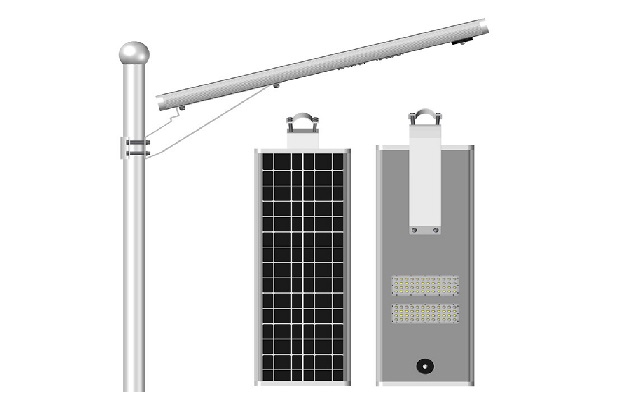

2022 New Smart Solar Street LED All In One 100W 120W Type Lighting
High-quality professional LED focus on lighting engineering construction, lamps can be used for a variety of occasions professional lighting technology to provide customers with high quality lighting production services.
- 100W/120W
- Made of 6063 aluminum
- Monocrystalline solar panel
- Auto On/Off + microwave induction + time control + intelligent control
- LiFePO4 Lithium battery
- Charge Time: 4-6 hours
- Discharge Time: supporting 3-7 rainy days
- HD Camera for option
- IP65 waterproof
- 3 Years warranty.







- Description
- Video
- Data sheet
- Optic & Dialux
- Application
1.The radiator is 6063 aluminum, which adopts thick anti-corrosion paint treatment.
2.No additional wiring is required, saving costs, multiple mounting brackets can be tube mounted.
3.High light transmission PC protective cover of more than 90%, high light efficiency.
4.High charging efficiency up to 95%. MPPT controller is automatically adjust the output power according to weather changing.
5.Using Lumileds SMD 2835 led chips, high luminous efficiency up to 180lm/w, low luminous decay, high energy-saving.
6.High thermal conductivity aluminum substrate and radiator, low temperature rise, good heat dissipation of the whole lamp, and more guaranteed life.
7.3 Years warranty guarantee, lifetime cost and priec maintenance.

Product Model | GH-LK-100W | GH-LK-120W |
Power | 100W | 120W |
Solar Panel | 36V/120W Mono-crystalline | 36V/150W Mono-crystalline |
Battery | LiFePO4 Lithium battery 24V,30AH (720WH) | LifePO4 Lithium battery 24V,36AH (864WH) |
Material | 6063 aluminum + PMMA Lens | |
CCT | 2700K-6500K | |
LEDs Chips | Lumileds SMD 2835/3030 | |
Luminous Efficiency | 180lm/w | |
Lumen | 18000lm | 21600lm |
Controller | MPPT controller, up to 95% efficiency, PWM | |
Lighting Method | Auto On/Off + Microwave Induction + Time Control + Intelligent Control | |
Charge Time | 4-6 Hours | |
Temperature | -30℃-+55℃ | |
Lifetime | 50,000 hours | |
Beam Angle | TYPE II, TYPE III, TYPE IV, TYPE V | |
IP Grade | IP65 | |
Warranty | 3 years | |
Solar Panel Size | 1300*500mm | 1470*500mm |
Package | Support customized company logo and package, OEM & ODM are available | |
Product Size | 1310*528*50mm | 1490*528*50mm |
Gross Weight | 26KG | 28.5KG |
-
Country Road
-
Front Road
-
Parking Lot
-
High Way
-
Rural Road
-
Viaducts
-
